Developed in collaboration with Lawton Tools, Network Rail, VGC Rail Projects and Jafco Tools Limited, the insulated rail measuring wheel is purposely designed to provide protection to the operator when working near to live conductor rails when measuring lengths of rail sections / overall distances.

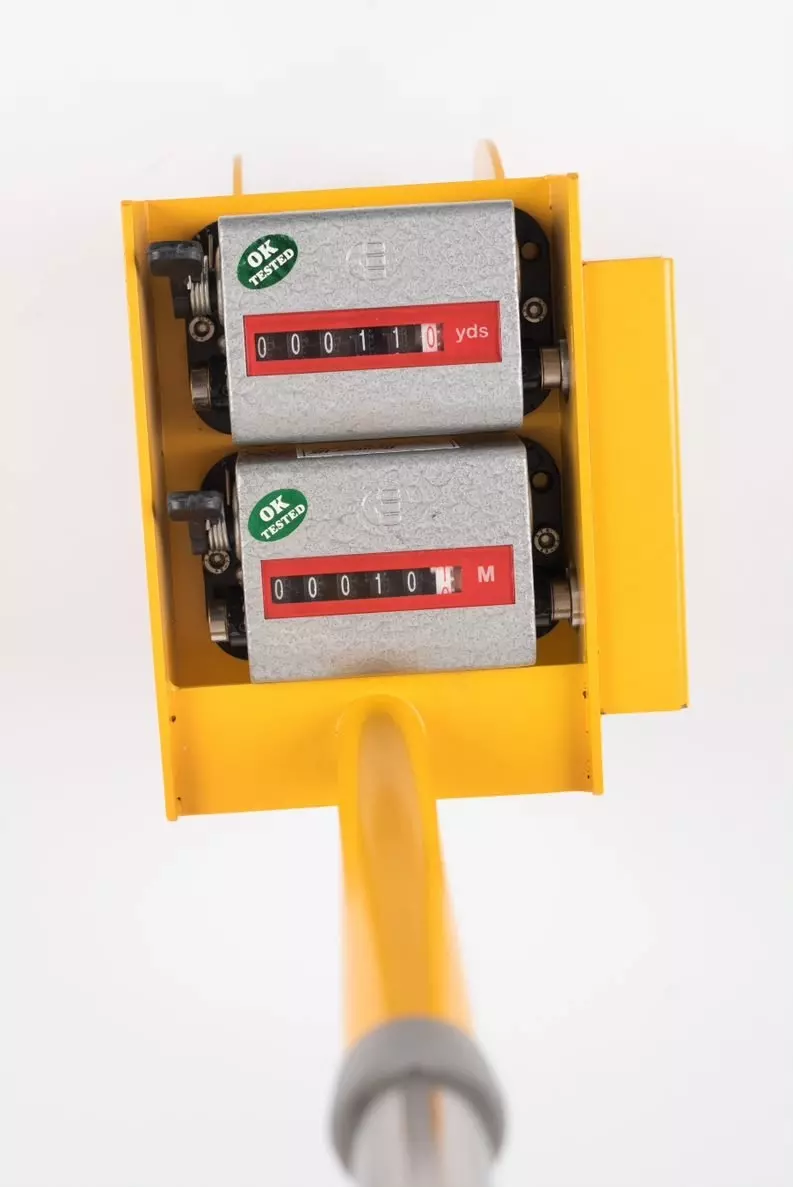

The unit is dual scaled, enabling measurements to be made both in metres and yards.
Features:
- Protects Operator working near live conductor rails.
- Dual reading in both Imperial and Metric.
- Adds when pushed forwards / subtracts when reversed
- Comes with heavy duty storage bag
Specifications:
- Accuracy +/- 0.5%
- Insulated in accordance to BS8020:201
- Measuring Distance 9999.9m or 9999.9yrds
- Increments 0.1m or 0.1yrds
- Wheel Circumference 0.5m
- Wheel diameter:0.16m
- Weight 4.40kgs
- Dimensions: 1004mm (H) x 192mm (L) x 170mm (W)
- Can be calibrated
Uses:
The Avancer Rail Wheel Standard Measuring Wheel is ideal for working near live tracks.
