Temperature Controllers

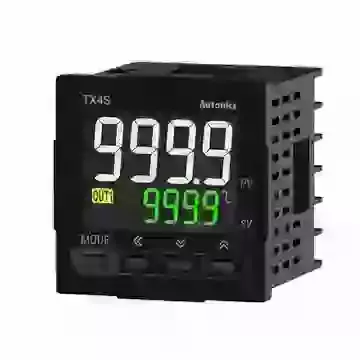

The TX series temperature controllers feature easy-to-read LCD displays with large, white PV characters. The 11-segment displays used for PV and SV are useful for displaying various alphanumeric characters and provide improved legibility. The temperature controllers also feature 50 ms high-speed sampling cycle and ±0.3% display accuracy. The space-saving design with 45 mm depth allows easy installation in limited spaces (DIN 48 x 48 mm models). The TX series can be configured and monitored on PCs via USB or RS485 communication, and are available in diverse sizes for flexible installation in various environments.

Features

• 50ms high-speed sampling rate and ±0.3% display accuracy
• Large LCD display with easy-to-read white PV characters
• Switch between current output and SSR drive output
• SSR drive output (SSRP function) control options : ON/OFF control, cycle control, phase control
• Communication output model available : RS485 (Modbus RTU)
• Parameter configuration via PC (RS485 communication) : DAQMaster software included (comprehensive device management software)
• Compact, space-saving design with 45mm depth : 30% rear-length size reduction compared to similar-sized (48×48mm) models from Autonics



Standard type PID temperature controllers TK Series with powerful controlling using a super high-speed sampling cycle of 50ms and ±0.3% display-accuracy. It supports heating/cooling simultaneous control, automatic/manual control, SSR output/current output selectable function, SSRP output function and communication function. In addition, it covers diverse input sensor support, multi SV setting, high resolution display part and compact size.

Features

• Super high-speed sampling cycle (10 times faster compared to existing models): 50ms sampling cycle and ±0.3% display-accuracy.
• Improved visibility with wide display part and high luminance LED
• High performance controlling with heating/cooling control and automatic/manual control modes
• PC parameter setting via USB cable and RS485 connection (Modbus RTU): DAQMaster – free PC loader program supported: Dedicated USB cable – sold separately (SCM-US)
• SSR output/Current output selectable
• SSRP output (standard/phase/cycle/control selectable)
• Heater burn-out alarm (C.T input) (except TK4SP)
• Multi SV setting fuction (Max. 4) – selectable via digital input terminals
• Mounting space saving with compact design: downsized by approx. 38%(60mm) in depth compared to existing models
• Multi input / Multi range

Dual PID temperature controller TZN/TZ realizes ±0.3% high display accuracy by F.S value of each input. The series also supports various functions including 2-step auto tuning control function, diverse sub-output function; in addition, 13 kinds of multi-input function which makes temperature sensors, voltage and current input possible is also embodied in order to guarantee better users´ convenience.

Available in 48x48mm, 72x72mm, 96w x 48h mm, 96h x 48w mm and 96x96mm panel mount versions.

Features

• Dual PID auto tuning function :
  High-speed response of PID control to reach to the desired value fast, low-speed of response of PID control to minimize the overshoot even though response is a little bit slow.
• High display accuracy :
  ±0.3%(by F.S value of each input)
• 2-Steps auto tuning control function
• Multi-input function(13 kinds of multi-input selection function) :Temperature sensor, voltage and current selection function.
• Various sub output function :
  Includes in LBA, SBA, 7kinds of alarm output and 4 kindsof alarm option function, PV value transmission output(4-20mADC),RS485 communication output
• Display the decimal point for analog input

TC Series – one of the most cost effective temperature controlling solution with essential functions and improved performance – realizes ideal temperature controlling with newly developed PID control algorithm and 100ms high speed sampling. Especially, that both SSRP output and relay output are supported to realize effective and economical controlling; in addition, improved visibility and compact size is another feature of TC Series.

Features

• Dual preset indicator display SV & PV simultaneously
• 8 types of input sensors
     RTD : Pt100Ω, Cu50Ω
     TC : K(CA), J(IC), L(IC), T(CC), R(PR), S(PR)
• Realizes ideal temp. controlling with newly developed PID control algorithm and 100ms high speed sampling
• Relay output and SSRP output embodied together and 2EA alarm outputs supported
     : SSRP output makes phase control and cycle control possible. (AC power)
• Dramatically increased visibility using wide display part
• Mounting space saving with compact design short bodied.

Digital switch type PID temperature controllers TD Series satisfy both digital switch’s convenience and reliable control performance with PID control. Digital switch allows users easy SV setting and check without entering into program modes. In addition, PID control algorithm and 100ms sampling speed guarantee optimal temperature control. It also features wide display part to increase visibility and innovative depth size allows space saving mounting possible.

Features

• Digital switch application to PID temperature controllers
• Realizing 100ms high speed sampling
• SSR drive output/Relay output or SSR drive output/Current output selectable (TD4H/TD4L/TD4LP)
• Dramatically increased visibility using wide display part and high luminance LED
• Mounting space saving with compact design : downsized by approx. 38%(60mm) in depth compared to existing models

Uses

Applicable to various temperature controlling required facilities such as injection molding machinery

Features

• Simple and economical type
• ON/OFF and Proportional control
• Control output : Relay(250VAC 3A 1c or 250VAC 16A 1c)
• Input sensor : Thermocouple(J, K), RTD(Pt100?)
• Input correction function
• Finger safety type of terminal

Board type temperature controller TB42 series increases user convenience by suitable panel composition for desired place and purpose. This series has high performances through various functions including dual PID control function and time schedule function.

Features

• High quality and economical product
• Convenient organization of panel to use
• Dual PID control
• Time function
