Proximity Sensors
-

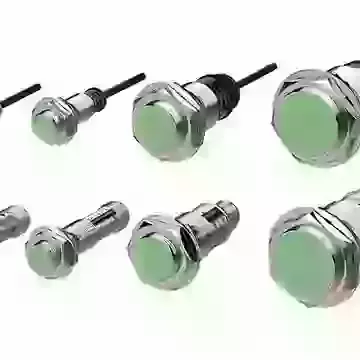

PR Inductive Proximity Sensors
PR-range
Cylindrical Inductive Proximity Sensors
The PR series inductive proximity sensors feature solid sensing performance, excellent noise immunity and protection circuits. Available in various sizes and sensing distances, the standard cylindrical inductive sensors can be used in diverse applications requiring non-contact detection of metallic objects.
Features
-
Feature (2) Connection type (3) Body size (3) Wire connection (2) Dimension (4) Sensing distance (7) Power supply (3) Control output (6) Cable Standard/material (4)
-
-

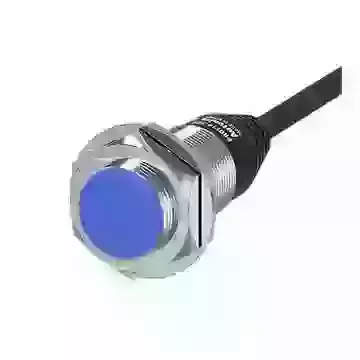

PRD Inductive Long Range Proximity Sensors
PRD-range
Cylindrical Long Range Inductive Proximity Sensors
The PRD series cylindrical inductive proximity sensors are available in standard and IO-Link communication models. The sensors feature long sensing distances and excellent noise immunity. Available in various sizes and sensing distances, the high performance cylindrical inductive sensors can be used in diverse applications requiring non-contact detection of metallic objects. The sensors also feature strain relief cables for improved flexural strength and durability.
Features
※ DC 4-wire M12, M18, M30 size IO-Link communication models have been added to the lineup
- Operation indicator (red LED)
- Communication indicator for IO-Link model (orange, green LED)
- IP67 protection structure (IEC standard)
- Strain relief cables: improved flexural strength of cable connecting component (except M8 models)
- PTFE coating prevents malfunctions caused by welding spatter (spatter-resistant model)
-

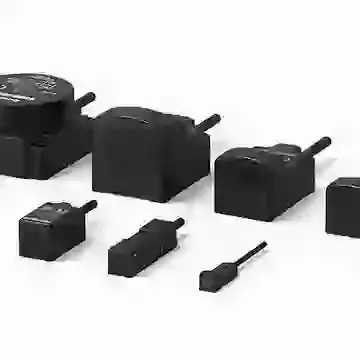

PS Inductive Inductive Proximity Sensors
PS-range
Rectangular Inductive Proximity Sensors
Inductive Proximity Sensors
The PS series rectangular inductive proximity sensors feature excellent noise immunity and protection circuits. Various sizes and sensing sides models are available for application in diverse environments.
Features
New compact 8 mm size models (DC 3-wire type) added to the line-up
- Operation indicator (red LED)
- IP67 protection structure (IEC standard)
- Various sensing sides models (8 x 8 mm, 12 x 12 mm, 17 x 17 mm)
- Alternate frequency models allow adjacent installation of multiple sensors without interference (PSN17-□-F)
-

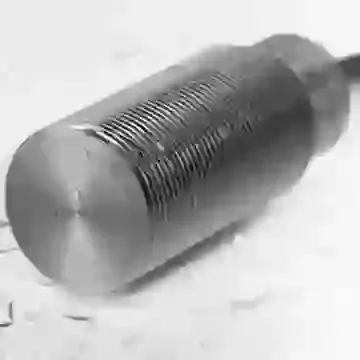

PRF Metal Inductive Proximity Sensors
PRF-range
Full-Metal Cylindrical Inductive Proximity Sensors
The PRF series cylindrical proximity sensors feature full-metal housing and sensor head made of stainless steel 303. The robust sensors are highly resistant to deformation and corrosion and can be applied in diverse environments including food and beverage manufacturing, chemical, and metalworking industries. The 0.8 mm thick metal sensor head provides high resistance to impact and wear and the 360° ring type operation indicator allows users to quickly identify operation status from various angles.
Features
High resistance to impact and wear caused by contact with workpieces or wire brushes (sensor head/housing: stainless steel Reduced risk of malfunction caused by aluminium chips)
- 360° ring type operation indicator (red LED) (except M8 models)
- Oil resistant cable
- IP67 protection structure (IEC standard)
- PTFE coating prevents malfunctions caused by welding spatter (spatter-resistant models)
-

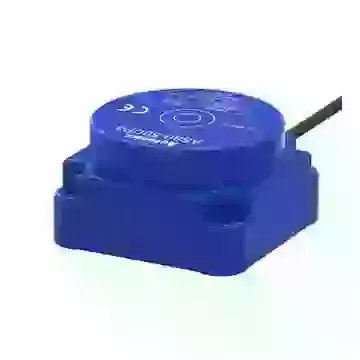

AS Inductive Inductive Proximity Sensors
AS-range
Rectangular Inductive Proximity Sensors with Long Sensing Distance
The AS series rectangular inductive proximity sensors feature long sensing distance of 50 mm and excellent noise immunity. The sensors are capable of simultaneous Normally Open + Normally Closed output, offering convenience and flexibility for users.
Features
New compact 8 mm size models (DC 3-wire type) added to the line-up
- Operation indicator (red LED)
- IP67 protection structure (IEC standard)
- Various sensing sides models (8 x 8 mm, 12 x 12 mm, 17 x 17 mm)
- Alternate frequency models allow adjacent installation of multiple sensors without interference (PSN17-□-F)
-

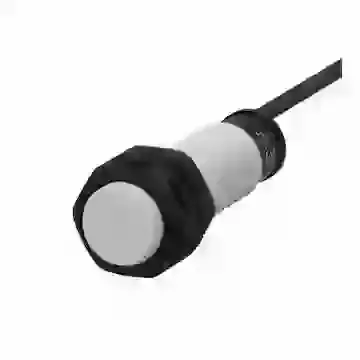

CR Capacitive Proximity Sensors
CS-range
Cylindrical Capacitive Proximity Sensors
The CR series cylindrical capacitive proximity sensors are capable of detecting any material with dielectric different from air. The sensors can detect conductive and non-conductive materials including metal, iron, stone, plastic, water, and grain. The built-in sensitivity adjuster allows easy configuration of detecting distance, making it ideal for application in various environmental settings.
Features
- Detect various materials including metal, iron, stone, plastic, water, and grain
- Built-in sensitivity adjuster for convenient configuration
- Operation indicator (red LED)
- Ideal for level detection and position control
