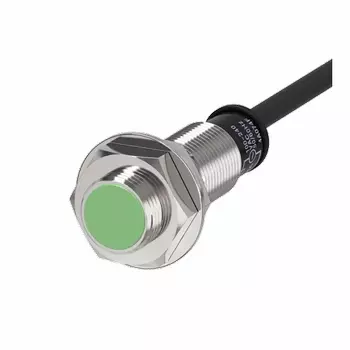

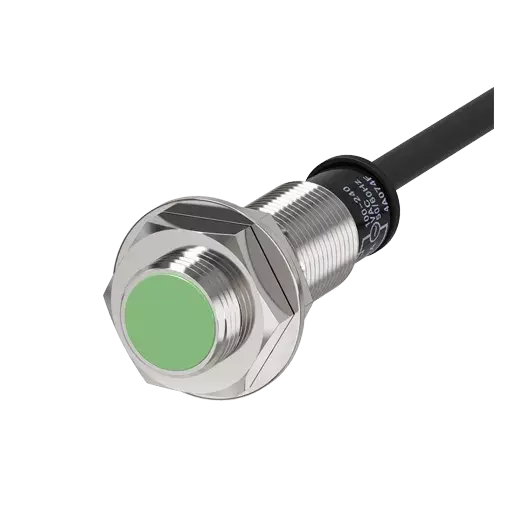

PR Inductive Proximity Range

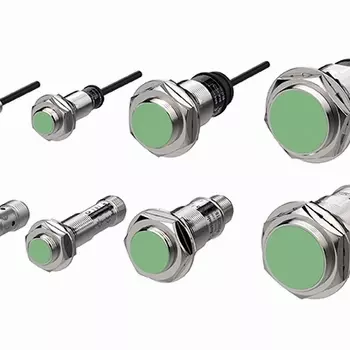

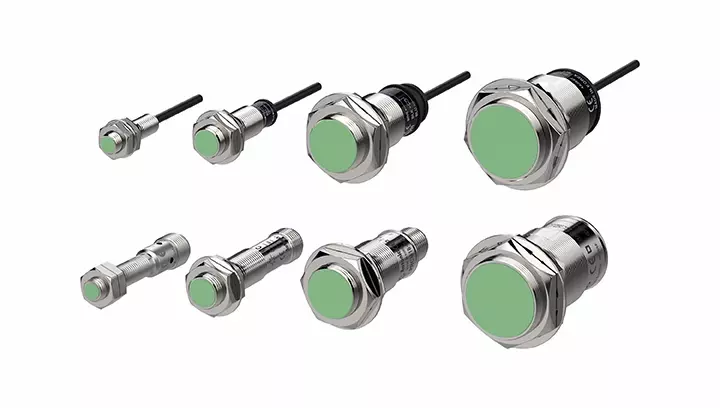

The PR series inductive proximity sensors feature solid sensing performance, excellent noise immunity and protection circuits. Available in various sizes and sensing distances, the standard cylindrical inductive sensors can be used in diverse applications requiring non-contact detection of metallic objects.

Features

• Feature (2)	Standard type Spatter resistance type

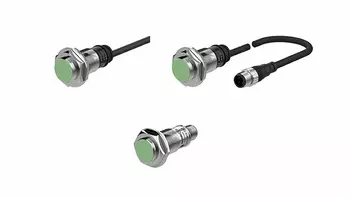

  Connection type (3)	Cable type Cable connector type Connector type
  Body size (3)	Standard type Long body Short body
  Wire connection (2)	DC 3-wire type, AC 2-wire type DC 2-wire type
  Dimension (4)	Diameter of head: 8mm Diameter of head: 12mm Diameter of head: 18mm Diameter of head: 30mm
  Sensing distance (7)	1.5mm 2mm 4mm 5mm 8mm 10mm 15mm
  Power supply (3)	12~24VDC 100~240VAC 12-24VDC(non-polar)
  Control output (6)	NPN Normally Open NPN Normally Closed PNP Normally Open PNP Normally Closed Normally Open Normally Closed
  Cable Standard/material (4)	Standard type Oil resistant cable IEC standard Oil resistant cable(IEC standard)
