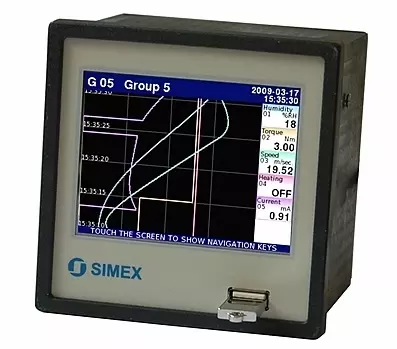

The Multicon CMC-99 Data Recorder is a powerful and versatile compact-multichannel-controller with a capability to log data from an extensive range of sensors, if the recording function is requested and activated.
Thanks to that the CMC-99 Data Recorder is one of the first industrial devices which integrates advanced control functions (PID, ON/OFF, time & profiles etc.) and logging of setpoints, excitations and current state of controlled objects.
Based on Linux firmware, the CMC-99 is stable, and the touch screen makes configuration easy and comfortable and data presentation also readable and attractive. Although the Multicon CMC-99 is build in a quite small housing, it can integrate up to 48 inputs, and its construction allows user almost free configuration by choosing up to 3 from 16 available input/output modules.
Features:
- Ability to record data
- Integrates advanced control functions (PID, ON/OFF, time & profiles etc.)
- Stable firmware based on Linux
- Easy to configure
- Easy to read
- Can integrate up to 48 inputs
Specifications:
- Power Supply 19V ÷ 50V DC; 16V ÷ 35V AC or 85 ÷ 260V AC/DC
- Input 48 analogue inputs (0-20 mA or 0-10V) max 48 digital inputs max.; 24 Thermocouple inputs max.; 12 RTD inputs max.; digital input: 1 x 24V DC
- Power Consumption Typical 15 VA; max. 20 VA
- Display 3.5 inch graphic TFT, 16-bit colour, 320 x 240 pixels, with touchscreen
