Counters & Timers

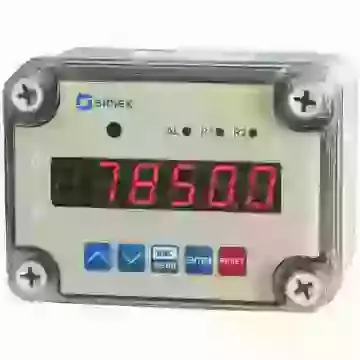

The SLIK-N118 universal, programmable counters are encased in a tight, wall-mounted housing (IP 67) and equipped with two independent counting inputs that can operate in various configurations (pulse or quadrature). Additional programmable input can change basic function of counting inputs (addition or subtraction of pulses from inputs, change the direction of counting) or hold counting without clearing.
The SLIK-N118 counter features an independent reset input. The REL / OC outputs with programmable thresholds can be used to control external equipment. The counter may be configured with no need to open the case, by using the remote controller or with free S-Config software via the RS-485 communication port.

Features

• universal counter with batching function
• 2 pulse counting inputs, channel a and b
• 1 programmable function input
• 4 counter reset sources
• 0, 2 or 4 REL / OC outputs
• prescaler and digital filter
• RS-485 / Modbus RTU
• free configuration software S-Config

Specifications

• Number of inputs	1
  Input type	pulse: 2 x counting; 1 x programmable, 1 x reset
  Input levels	low: 0...1V; high: 10...30V
  Input frequency	electronic: 10 kHz (standard), 5 kHz (quadrature); contact: max. 90 Hz (adjustable filter)
  Output type	Open Collector: I=30 mA, U=30V DC, P=100 mW relay I=1A, U=30V DC/250V AC (cosø=1)
  Measurement method	electrical, pulse
  Power supply	16...35V AC, 19...50V DC 85..260V AC/DC 11,4...15V AC/DC
  Display	LED, 6 x 13 mm, red LED, 6 x 13 mm, green
  Communication Interface	RS-485 / Modbus RTU
  Transmission parameters	1200...115200 bit/s, 8N1 / 8N2
  Operating temperature	0...+50°C -20…+50°C

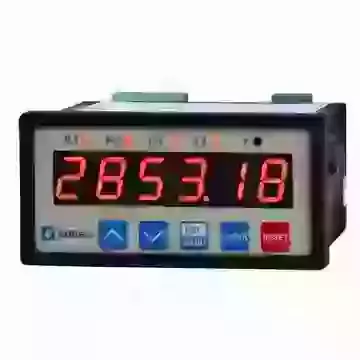

Universal programmable counter type SLIK-94 is equipped with many modern features required in simple and advanced automatic control systems. Two counting inputs (pulse inputs) can operate in few different modes (as two independent pulse inputs or single quadrature input). Additional programmable input can change basic function of counting inputs (addition or subtraction of pulses from inputs, change the direction of counting) or to stop counting without clearing. Build in RS-485 communication interface enables controlling of all settings by host, and allows use of unit in advanced network systems. SLIK-94 is equipped with independent clearing input. The device can be equipped with one relay (or OC type) output with independent threshold, which can be used to control external devices. The counter can be configured with the local keyboard or free S-Config software via the RS-485 communication port.

Features

• universal counter with batching function
• 2 pulse counting inputs, channel a and b
• 1 programmable function input
• 4 counter reset sources
• 0, 2 or 4 REL / OC outputs
• prescaler and digital filter
• RS-485 / Modbus RTU
• free configuration software S-Config

Specifications

• Number of inputs	1
  Input type	pulse: 2 x counting; 1 x programmable, 1 x reset
  Input levels	low: 0...1V; high: 10...30V
  Input frequency	electronic: 10 kHz (standard), 5 kHz (quadrature); contact: max. 90 Hz (adjustable filter)
  Output type	Open Collector: I=30 mA, U=30V DC, P=100 mW relay I=1A, U=30V DC/250V AC (cosø=1)
  Measurement method	electrical, pulse
  Power supply	16...35V AC, 19...50V DC 85..260V AC/DC 11,4...15V AC/DC
  Display	LED, 6 x 13 mm, red LED, 6 x 13 mm, green
  Communication Interface	RS-485 / Modbus RTU
  Transmission parameters	1200...115200 bit/s, 8N1 / 8N2
  Operating temperature	0...+50°C -20…+50°C

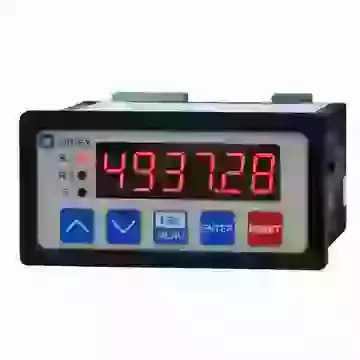

Universal programmable counter type SLIK-73 is equipped with many modern features required in simple and advanced automatic control systems. Two counting inputs (pulse inputs) can operate in few different modes (as two independent pulse inputs or single quadrature input). Additional programmable input can change basic function of counting inputs (addition or subtraction of pulses from inputs, change the direction of counting) or to stop counting without clearing. Build in RS-485 communication interface enables controlling of all settings by host, and allows use of unit in advanced network systems. SLIK-73 is equipped with independent clearing input. The device can be equipped with one relay (or OC type) output with independent threshold, which can be used to control external devices. The counter can be configured with the local keyboard or free S-Config software via the RS-485 communication port.

Features

• universal counter with batching function
• 2 pulse counting inputs
• 1 programmable function input
• 4 counter reset sources
• 0 or 1 REL / OC output
• prescaler and digital filter
• RS-485 / Modbus RTU
• free configuration software S-Config

Specifications

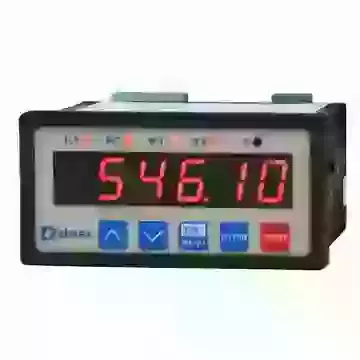

Universal totalizing SLB-94 counter is designed for counting the pulses related to physical quantities like: number of revolutions, details, swichings etc. Allows counting in three internal registers called: main counter, cycles counter, and totalizer. Is equipped with 4 relay (or OC) outputs with independently defined switch-on altuation setpoints, which can be used for controlling of external devices. SLB-94 is equipped with 3 inputs which allows external reset of selected counter. All inputs of the counter are separated.

Features

• universal counter with internal cycles counter and totalizer
• 1 pulse counting input
• 3 independent reset sources
• 4 REL /  OC outputs
• prescaler and digital filter
• RS-485 / Modbus RTU
• ACCESS option - easy threshold modification

Specifications

The SLN-94 counter is equipped with single counting, hold, stop, clear/start inputs. Is designed for up-down counting of pulses in 3 decades and has single program register using for programming the batcher function. SLN-94 has two build-in relay outputs (N.O.) with selectable thresholds and modes of operation. It can be used for controlling of external devices. The counter is prepared for cooperation with NPN as well as PNP type sensors, Due to internal digital denouncing filter simple contactors can be used as sensors. Additionally build-in sensor supply output (24V DC) can be used to supply contactors and some types of electronic sensors.

Features

• up-down and down-up pulse counter with batching function
• settable activation threshold
• 1 pulse counting input / 3 control inputs
• 4 counter reset sources
• 2 REL / OC outputs
• double LED display
• RS-485 / Modbus RTU

Specifications

• Number of inputs	1
  Input type	pulse
  Input levels	low: 0...1V; high: 10...30V
  Input frequency	electronic: 10 kHz; contact: max. 90 Hz (adjustable filter)
  Output type	Open Collector: I=30 mA, U=30V DC, P=100 mW relay I=1A, U=30V DC/250V AC (cosø=1)
  Measurement method	electrical, pulse
  Tryb pracy	adding-subtracting
  Power supply	16...35V AC, 19...50V DC 85..260V AC/DC 11,4...15V AC/DC
  Display	LED, double: 3 x 13 mm (red) + 3 x 13 mm (green)
  Communication Interface	RS-485 / Modbus RTU
  Transmission parameters	1200...115200 bit/s, 8N1 / 8N2
  Operating temperature	0...+50°C -20…+50°C
  Protection class	IP 20 (case and connection clips) IP 65 (front) optional integrated frame for panel cut-out sealing
  Case material	NORYL-GFN2S E1
  Mounting	panel
  Case dimensions	96 x 48 x 100 mm

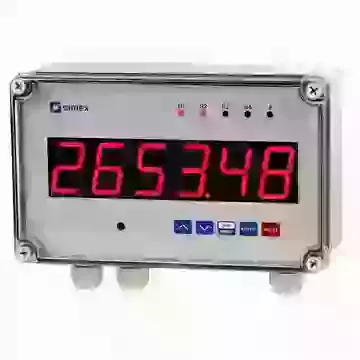

The SLIK-638 universal, programmable counters encased in a tight, wall-mounted housing (IP 67) with 6-digit, large LED display are equipped with two independent counting inputs that can operate in various configurations (pulse or quadrature). Additional programmable input can change basic function of counting inputs (addition or subtraction of pulses from inputs, change the direction of counting) or hold counting without clearing. The SLIK-638 counter features an independent reset input. The REL / OC outputs with programmable thresholds can be used to control external equipment. The counter may be configured with no need to open the case, by using the remote controller, the local keyboard or with free S-Config software via the RS-485 communication port.

Features

• multi-purpose counter in wall mounted IP 67 housing
• batching function
• 2 pulse counting inputs + 1 programmable function input
• 1 counter reset input
• binary outputs REL / OC
• digital debouncing filter
• 4 counter reset sources
• ultra bright red, green and blue display
• free configuration software S-Config

Specifications

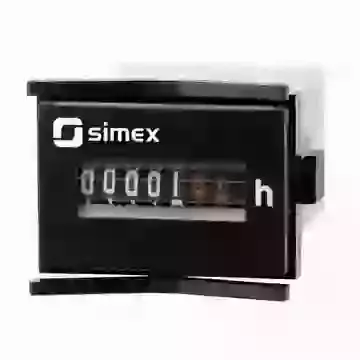

SLC series are highly reliable electromechanical hour meters. High shock and vibration resistance makes SLC ideal solution for monitoring  maintenance of machines, production lines and equipments. They are also suitable for measuring: time between repair or wear level. SLC series is characterized by IP 65 level protection and wide range of operating temperature -25°C ÷ +80°C.

Advantages of counters SLC-30: SLC45: SLC 46

• price competitive meter,
• available in 4 mounting variants,
• panel mounting case,
• excellent quality,
• long lifetime,
• all necessary approvals.

Applications: gen-sets, compressors, pumps, medical equipment, control panels, air conditioning.

Features

• electromechanical, price competitive hour meters
• wide range of power supply
• measurement up to 999999.9 h
• high IP 65 protection class
• high shock and vibration resistance
• panel and DIN rail mounting

Specifications

• Measurement method	mechanical
  Tryb pracy	adding
  Reset	no reset
  Power supply	12...36V DC 24V AC 230V AC
  Wskazanie	7 x 4 mm
  Measurement range	AC: 99999,99 h; DC: 999999,9 h
  Operating temperature	AC: -25...+70°C, DC: -10...+55°C
  Protection class	IP 65 (front)

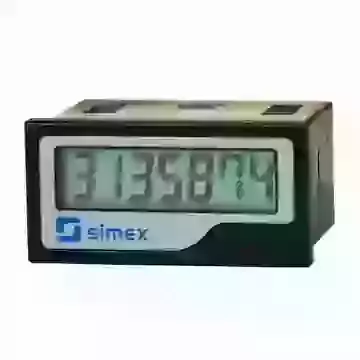

The STH-42 series is a self-powered LCD hourmeter in a small form. With a panel size of DIN 48 x 24 mm, it is perfect for limited space installations. It is powered by a replaceable lithium battery that lasts approximately 7 years, no external power required. The STH-42 series is available in 7 digits with 8 mm height figures with remote reset. Input signal includes dry contact, open collector, voltage, wide range voltage, with max. resolution 1 count per 1/10 hour. The front panel protection is IP54 and wiring connection is easily done via the terminal block connector, making it secure and reliable

Features

• up-down hour meter
• self-powered (lithium battery)
• 7 years battery lifetime
• input: dry contact / OC / voltage
• remote reset
• small panel size DIN 48 x 24 mm

Specifications

• Measurement method	mechanical
  Tryb pracy	adding
  Reset	no reset
  Power supply	12...36V DC 24V AC 230V AC
  Wskazanie	7 x 4 mm
  Measurement range	AC: 99999,99 h; DC: 999999,9 h
  Operating temperature	AC: -25...+70°C, DC: -10...+55°C
  Protection class	IP 65 (front)

The SLC-457 Electronic Timer  is designed for time counting in range from 0 to 100 hours with resolution of 1 min. Actual result is showed on 4-digit display, and the user can change it’s bright in 8 steps range. The device is equipped with 4 buttons for main presets programming. To get high protection level, the keyboard is mounted under transparent waterproof cover. This feature allows to use SLC-457 in hazardous environments.

Features

• timer in tight, wall mounting case, IP 67
• 4 x 57 mm LED display, brightness adjustable in 8 steps
• pulse input START - counting enable
• input RESET - clear counter
• power supply output: 24V DC
• RS-485 / Modbus RTU
• free configuration S-Config software

Specifications

• Power Supply: 19V ÷ 50V DC; 16V ÷ 35V AC or 85 ÷ 260V AC/DC
• Power Consumption: For 85 ÷ 260V AC/DC and 16V ÷ 35V AC power supply: max. 4,5 VA; 19V ÷ 50V DC power supply: max. 4,5 W
• Display: LED, red, 4 x 57 mm, with 8-step adjustment of brighness
• Resolution: 1 minute

The SLC-457 Electronic Timer  is designed for time counting in range from 0 to 100 hours with resolution of 1 min. Actual result is showed on 4-digit display, and the user can change it’s bright in 8 steps range. The device is equipped with 4 buttons for main presets programming. To get high protection level, the keyboard is mounted under transparent waterproof cover. This feature allows to use SLC-457 in hazardous environments.

Features

• timer in tight, wall mounting case, IP 67
• 4 x 57 mm LED display, brightness adjustable in 8 steps
• pulse input START - counting enable
• input RESET - clear counter
• power supply output: 24V DC
• RS-485 / Modbus RTU
• free configuration S-Config software

Specifications

• Power Supply: 19V ÷ 50V DC; 16V ÷ 35V AC or 85 ÷ 260V AC/DC
• Power Consumption: For 85 ÷ 260V AC/DC and 16V ÷ 35V AC power supply: max. 4,5 VA; 19V ÷ 50V DC power supply: max. 4,5 W
• Display: LED, red, 4 x 57 mm, with 8-step adjustment of brighness
• Resolution: 1 minute
