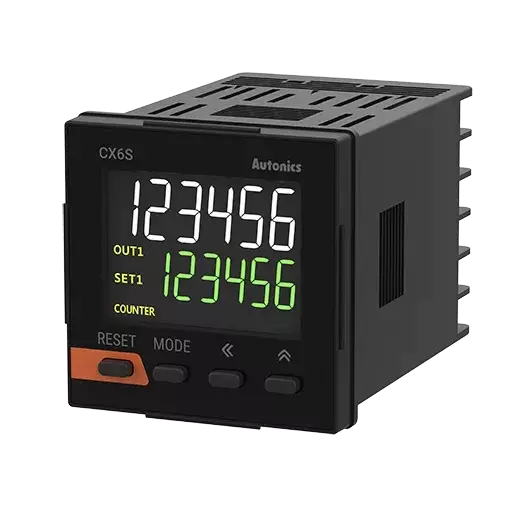

CX Preset Counters and Timers are flexible 48mm x 48mm lcd instruments suitable for a wide range of applications. In addition, the CX Preset Counters and Timers also have full scaling capability allowing most engineering units to be displayed from various input devices such as encoders or proximity switches.
Features:
- RS485 communication (Modbus RTU) function
: Parameter setting and monitoring via PC
: PC loader program ´DAQMaster´ provided free of charge
- Increased contact capacity of load to 5A(Previous model: 3A)(CTS, CTM)
- Sets one-shot output time from 0.01to 99.99 sec. per 10ms
- Diverse input/output modes available
[Counter]
- Available to set 6 digit prescale value (0.00001~999999)
- Added BATCH counter indication mode for CX6M-1P and CX6M-2P
- Available to set Count Start Point (Initial value)
[Timer]
- Memory backup function (For indicator)
- More diverse time range
(6 Digit : 999.99s / 9999m59 / 99999.9h, )
- Available to set ´´0´´
Additional Features:
- Counter/timer function selectable
- Multi-functional counter/timer(include 829,728 functions)
- Prescale function
- High speed counting of 10kcps
- Batch counter function(CT6M-1P, CX6M-2P only)
- Voltage input(PNP)/No voltage input(NPN) selectable
- Individual ON/OFF time setting in Flicker(FLK) mode
- Key lock function
