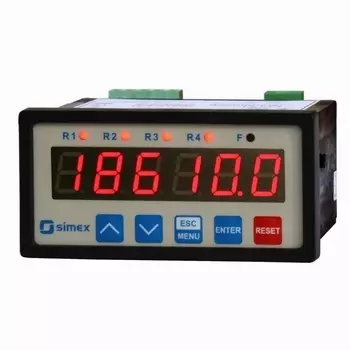

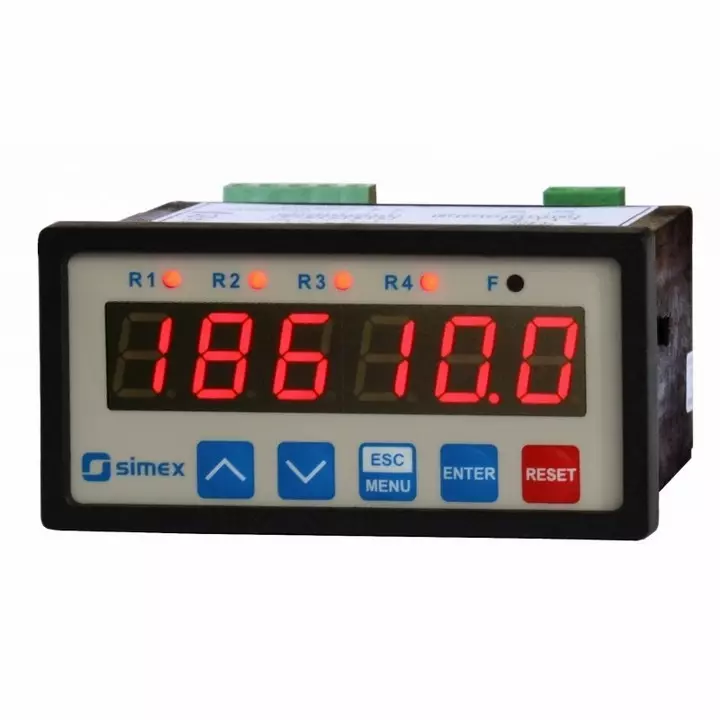

The STI-94 tachometers are designed to control rotational or linear speed of moving objects. The device is also able to measure frequency. As an additional advantage the device can convert the rotational / linear speed into inverse values, and to display the single revolution period or process duration. The REL / OC control outputs can be programmed depending on the instantaneous value of rotational speed. Additionally the counter may be equipped with analogue outputs, according to the customer selection: active current output, passive isolated current output or active voltage output. The counter can be configured with the local keyboard or free S-Config software via the RS-485 communication port.
Features
- pulse rate / period meter
- rotational / linear speed control
- revolution / movement period control
- 0, 2 or 4 REL / OC outputs
- analogue output: active or passive, power supply output: 24V DC
- RS-485 / Modbus RTU
- "over" signalling when the measuring range is exceeded
- free configuration software S-Config
Specifications
-
| Number of inputs |
1
|
| Input type |
pulse
|
| Input levels |
low: 0...1V; high: 10...30V
|
| Input frequency |
1,5...50 kHz
|
| Output type |
depends on configuration:
relay I=1A, U=30V DC/250V AC (cosø=1)
Open Collector: I=30 mA, U=30V DC, P=100 mW
0/4...20 mA: active current, operating range 0...24 mA max., load resistance 700 Ω max., resolution 13 bit
4...20 mA: passive current, isolated, operating range 2,8...24 mA max., load resistance 600 Ω@24VDC, resolution 13 bit
0/1...5V, 0/2...10V: active voltage, operating range 0...11V max., load resistance min. 2000 Ω, resolution 13 bit
|
| Measurement unit |
revolutions per second, per minute, per hour
|
| Measurement method |
electrical, pulse
|
| Power supply |
16...35V AC, 19...50V DC
85..260V AC/DC
11,4...15V AC/DC
|
| Display |
LED, 6 x 13 mm, red
|
| Communication Interface |
RS-485 / Modbus RTU
|
| Transmission parameters |
1200...115200 bit/s, 8N1 / 8N2
|
| Operating temperature |
0...+50°C
-20…+50°C
|
| Protection class |
IP 20 (case and connection clips)
IP 65 (front)
optional integrated frame for panel cut-out sealing
|
| Case material |
NORYL-GFN2S E1
|
| Mounting |
panel
|
| Case dimensions |
96 x 48 x 100 mm
|
