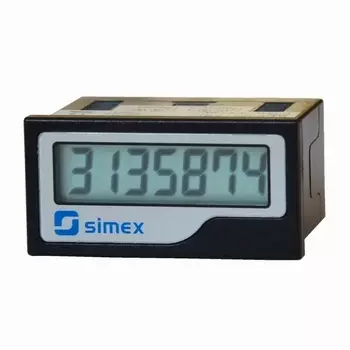

The STH-42 series is a self-powered LCD hourmeter in a small form. With a panel size of DIN 48 x 24 mm, it is perfect for limited space installations. It is powered by a replaceable lithium battery that lasts approximately 7 years, no external power required. The STH-42 series is available in 7 digits with 8 mm height figures with remote reset. Input signal includes dry contact, open collector, voltage, wide range voltage, with max. resolution 1 count per 1/10 hour. The front panel protection is IP54 and wiring connection is easily done via the terminal block connector, making it secure and reliable
Features
- up-down hour meter
- self-powered (lithium battery)
- 7 years battery lifetime
- input: dry contact / OC / voltage
- remote reset
- small panel size DIN 48 x 24 mm
Specifications
-
| Measurement method |
mechanical
|
| Tryb pracy |
adding
|
| Reset |
no reset
|
| Power supply |
12...36V DC
24V AC
230V AC
|
| Wskazanie |
7 x 4 mm
|
| Measurement range |
AC: 99999,99 h; DC: 999999,9 h
|
| Operating temperature |
AC: -25...+70°C, DC: -10...+55°C
|
| Protection class |
IP 65 (front)
|
