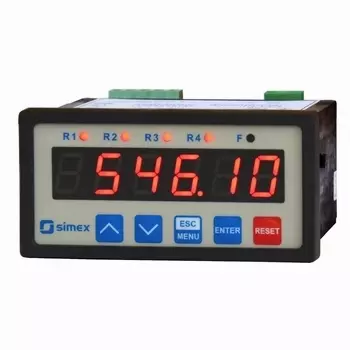

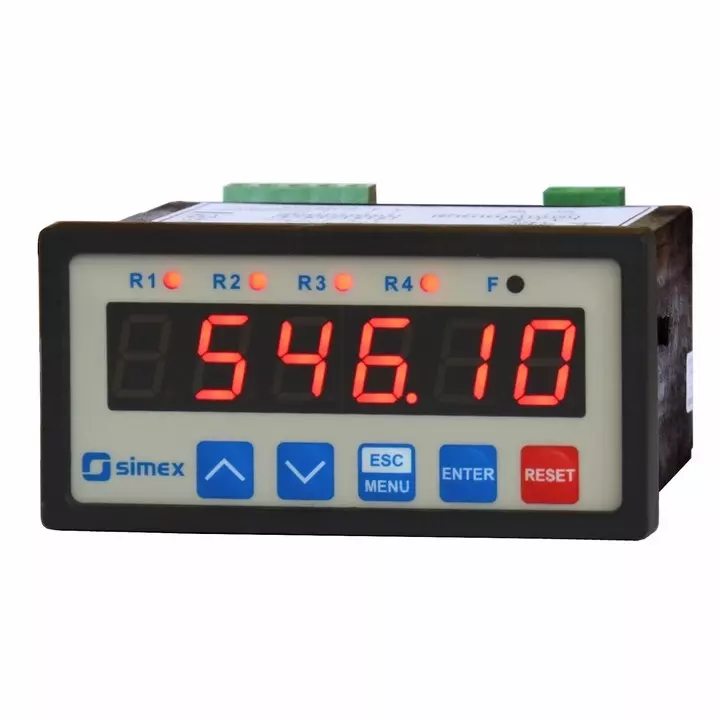

Universal totalizing SLB-94 counter is designed for counting the pulses related to physical quantities like: number of revolutions, details, swichings etc. Allows counting in three internal registers called: main counter, cycles counter, and totalizer. Is equipped with 4 relay (or OC) outputs with independently defined switch-on altuation setpoints, which can be used for controlling of external devices. SLB-94 is equipped with 3 inputs which allows external reset of selected counter. All inputs of the counter are separated.
Features
- universal counter with internal cycles counter and totalizer
- 1 pulse counting input
- 3 independent reset sources
- 4 REL / OC outputs
- prescaler and digital filter
- RS-485 / Modbus RTU
- ACCESS option - easy threshold modification
Specifications
| Number of inputs |
1
|
| Input type |
pulse: 1 x counting, 3 x reset
|
| Input levels |
low: 0...1V; high: 10...30V
|
| Input frequency |
electronic: 10 kHz; contact: max. 90 Hz (adjustable filter)
|
| Output type |
Open Collector: I=30 mA, U=30V DC, P=100 mW
|
| Measurement method |
electrical, pulse
|
| Tryb pracy |
adding-subtracting
|
| Power supply |
16...35V AC, 19...50V DC
|
| Display |
LED, 6 x 13 mm, red
|
| Communication Interface |
RS-485 / Modbus RTU
|
| Transmission parameters |
1200...115200 bit/s, 8N1 / 8N2
|
| Operating temperature |
0...+50°C
-20…+50°C
|
| Protection class |
IP 20 (case and connection clips)
IP 65 (front)
optional integrated frame for panel cut-out sealing
|
| Case material |
NORYL-GFN2S E1
|
| Mounting |
panel
|
| Case dimensions |
96 x 48 x 100 mm
|
