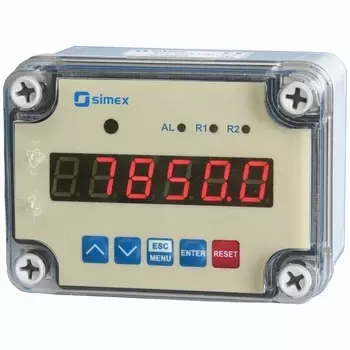

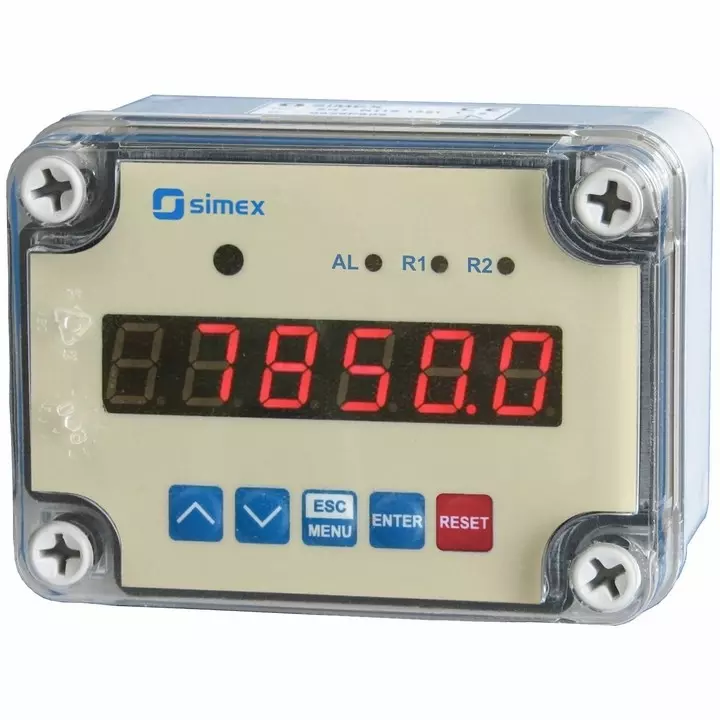

The SLIK-N118 universal, programmable counters are encased in a tight, wall-mounted housing (IP 67) and equipped with two independent counting inputs that can operate in various configurations (pulse or quadrature). Additional programmable input can change basic function of counting inputs (addition or subtraction of pulses from inputs, change the direction of counting) or hold counting without clearing.
The SLIK-N118 counter features an independent reset input. The REL / OC outputs with programmable thresholds can be used to control external equipment. The counter may be configured with no need to open the case, by using the remote controller or with free S-Config software via the RS-485 communication port.
Features
- universal counter with batching function
- 2 pulse counting inputs, channel a and b
- 1 programmable function input
- 4 counter reset sources
- 0, 2 or 4 REL / OC outputs
- prescaler and digital filter
- RS-485 / Modbus RTU
- free configuration software S-Config
Specifications
-
| Number of inputs |
1
|
| Input type |
pulse: 2 x counting; 1 x programmable, 1 x reset
|
| Input levels |
low: 0...1V; high: 10...30V
|
| Input frequency |
electronic: 10 kHz (standard), 5 kHz (quadrature); contact: max. 90 Hz (adjustable filter)
|
| Output type |
Open Collector: I=30 mA, U=30V DC, P=100 mW
relay I=1A, U=30V DC/250V AC (cosø=1)
|
| Measurement method |
electrical, pulse
|
| Power supply |
16...35V AC, 19...50V DC
85..260V AC/DC
11,4...15V AC/DC
|
| Display |
LED, 6 x 13 mm, red
LED, 6 x 13 mm, green
|
| Communication Interface |
RS-485 / Modbus RTU
|
| Transmission parameters |
1200...115200 bit/s, 8N1 / 8N2
|
| Operating temperature |
0...+50°C
-20…+50°C
|
